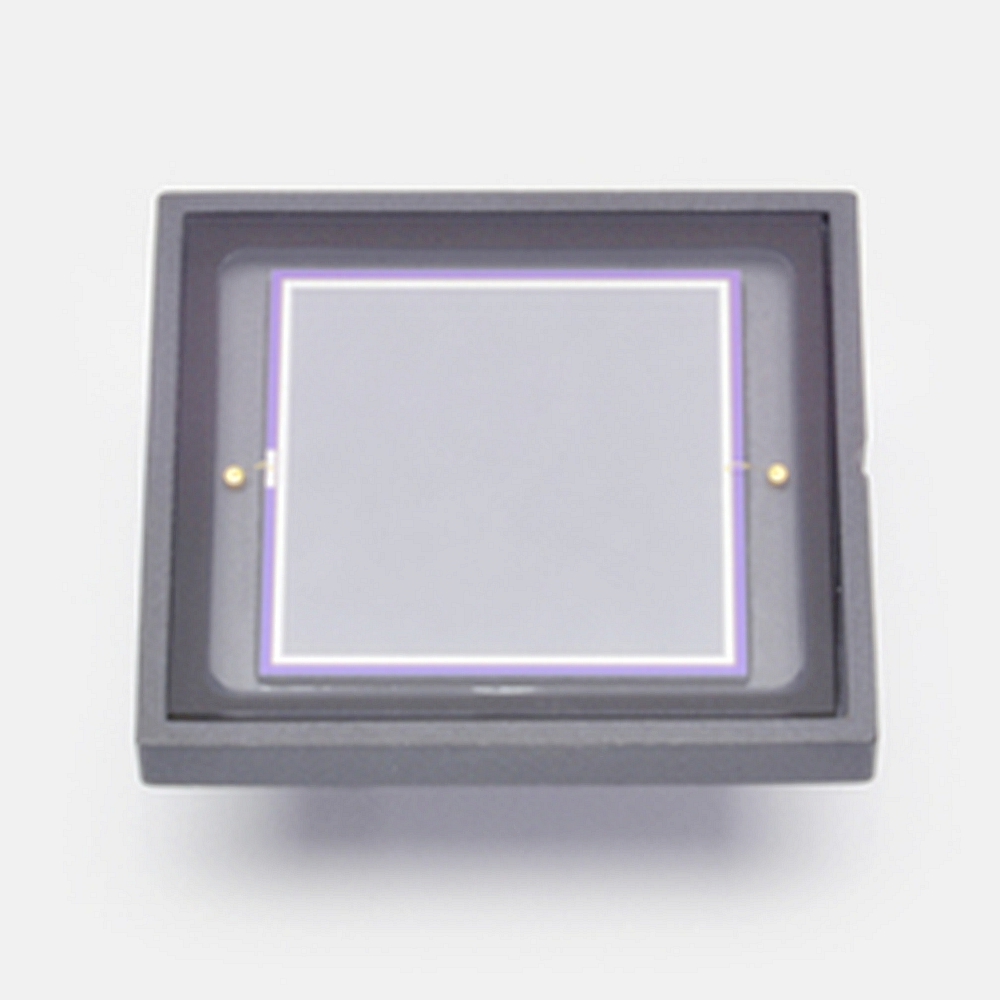

hamamatsu S1227-1010BQ For UV to visible, precision photometry; suppressed IR sensitivity

$490.00

Features – High UV sensitivity (quartz window type): QE＝75 % (λ=200 nm) – Suppressed IR sensitivity – Low dark current Specifications Photosensitive area 10 × 10 mm Package Ceramic Package category — Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 190 to 1000 nm Peak sensitivity wavelength (typ.) 720 nm Photosensitivity (typ.)…

Description

Features
– High UV sensitivity (quartz window type): QE＝75 % (λ=200 nm)
– Suppressed IR sensitivity
– Low dark current

Specifications

Photosensitive area	10 × 10 mm
Package	Ceramic
Package category	—
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	190 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	50 pA
Rise time (typ.)	7 μs
Terminal capacitance (typ.)	3000 pF
Noise equivalent power (typ.)	8.0×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
