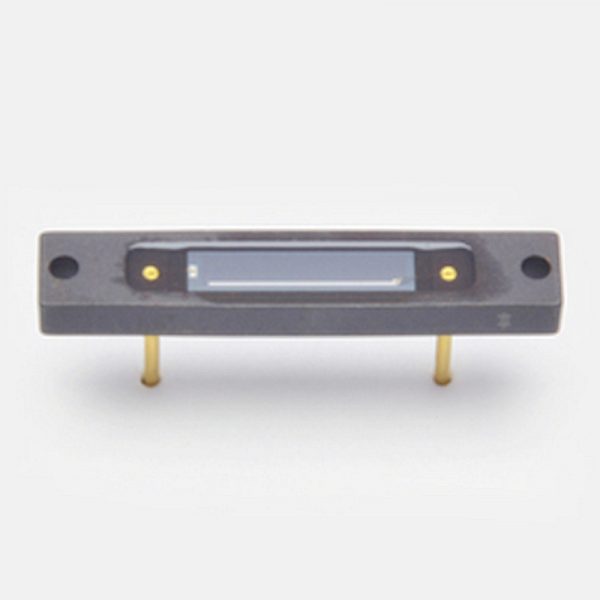

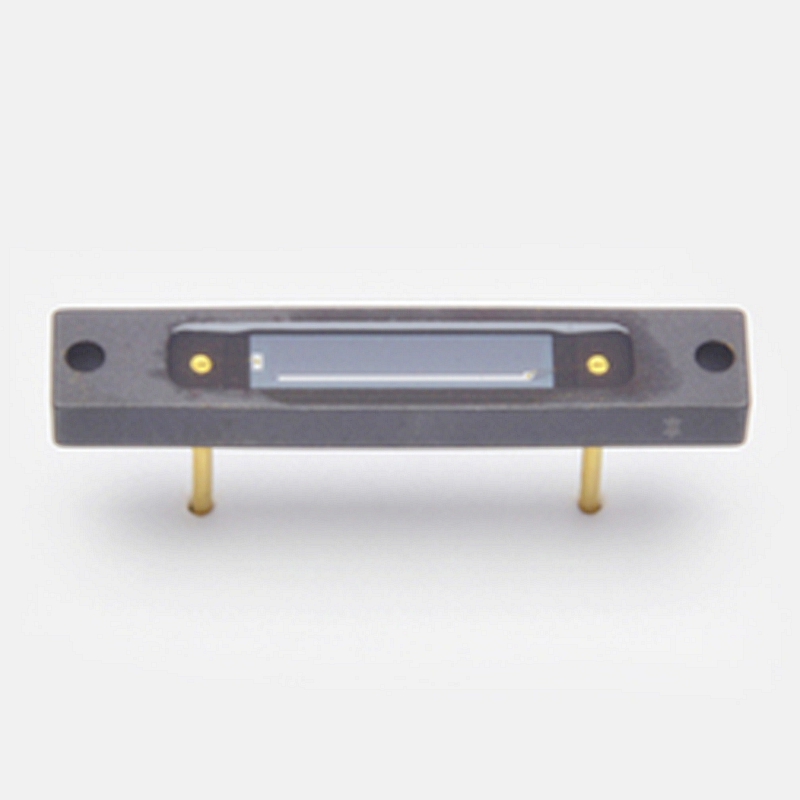

hamamatsu S1227-16BR For UV to visible, precision photometry; suppressed IR sensitivity

$490.00

Features – Resin potting type – Suppressed IR sensitivity – Low dark current Specifications Photosensitive area 5.9 × 1.1 mm Package Ceramic Package category — Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 340 to 1000 nm Peak sensitivity wavelength (typ.) 720 nm Photosensitivity (typ.) 0.43 A/W Dark current (max.) 5 pA…

Description

Features
– Resin potting type
– Suppressed IR sensitivity
– Low dark current

Specifications

Photosensitive area	5.9 × 1.1 mm
Package	Ceramic
Package category	—
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	340 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.43 A/W
Dark current (max.)	5 pA
Rise time (typ.)	0.5 μs
Terminal capacitance (typ.)	170 pF
Noise equivalent power (typ.)	2.1×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
