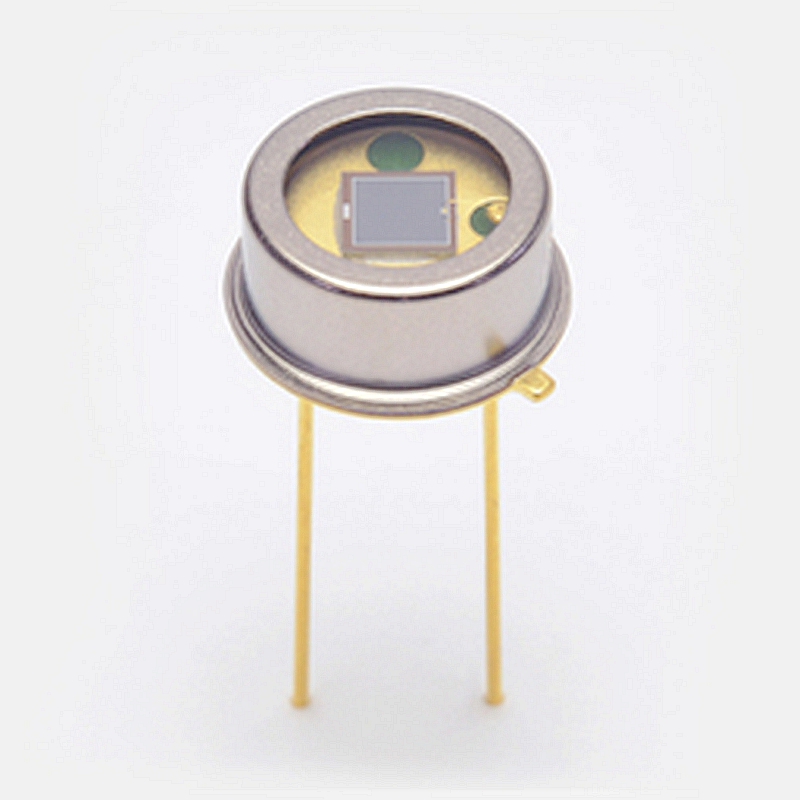

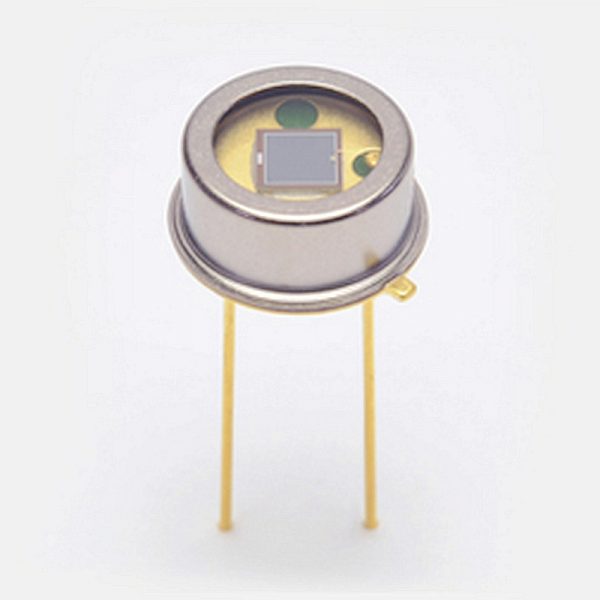

hamamatsu S1336-5BK UV to near IR for precision photometry

$490.00

Features – High sensitivity in UV range – Low capacitance – High reliability Specifications Photosensitive area 2.4 × 2.4 mm Package Metal Package category TO-5 Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 320 to 1100 nm Peak sensitivity wavelength (typ.) 960 nm Photosensitivity (typ.) 0.5 A/W Dark current (max.) 30 pA…

Description

Features
– High sensitivity in UV range
– Low capacitance
– High reliability

Specifications

Photosensitive area	2.4 × 2.4 mm
Package	Metal
Package category	TO-5
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.5 A/W
Dark current (max.)	30 pA
Rise time (typ.)	0.2 μs
Terminal capacitance (typ.)	65 pF
Noise equivalent power (typ.)	8.1×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
