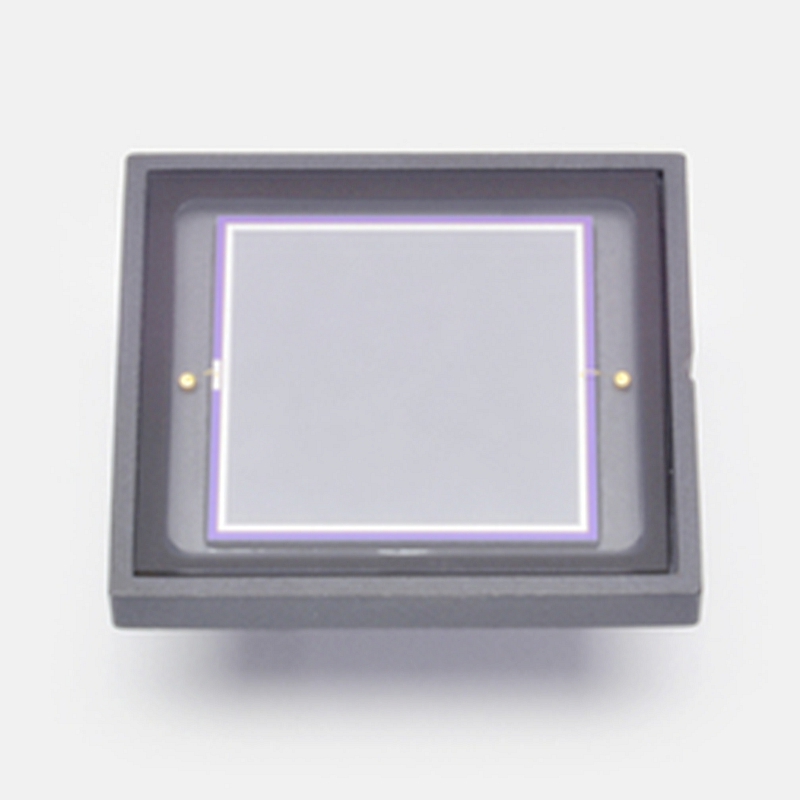

hamamatsu S1337-1010BQ For UV to IR, precision photometry

$490.00

Features – High UV sensitivity: QE 75% (λ=200 nm) – Low capacitance Specifications Photosensitive area 10 × 10 mm Package Ceramic Package category — Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 190 to 1100 nm Peak sensitivity wavelength (typ.) 960 nm Photosensitivity (typ.) 0.5 A/W Dark current (max.) 200 pA Rise…

Description

Features
– High UV sensitivity: QE 75% (λ=200 nm)
– Low capacitance

Specifications

Photosensitive area	10 × 10 mm
Package	Ceramic
Package category	—
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	190 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.5 A/W
Dark current (max.)	200 pA
Rise time (typ.)	3 μs
Terminal capacitance (typ.)	1100 pF
Noise equivalent power (typ.)	1.8×10^-14 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
