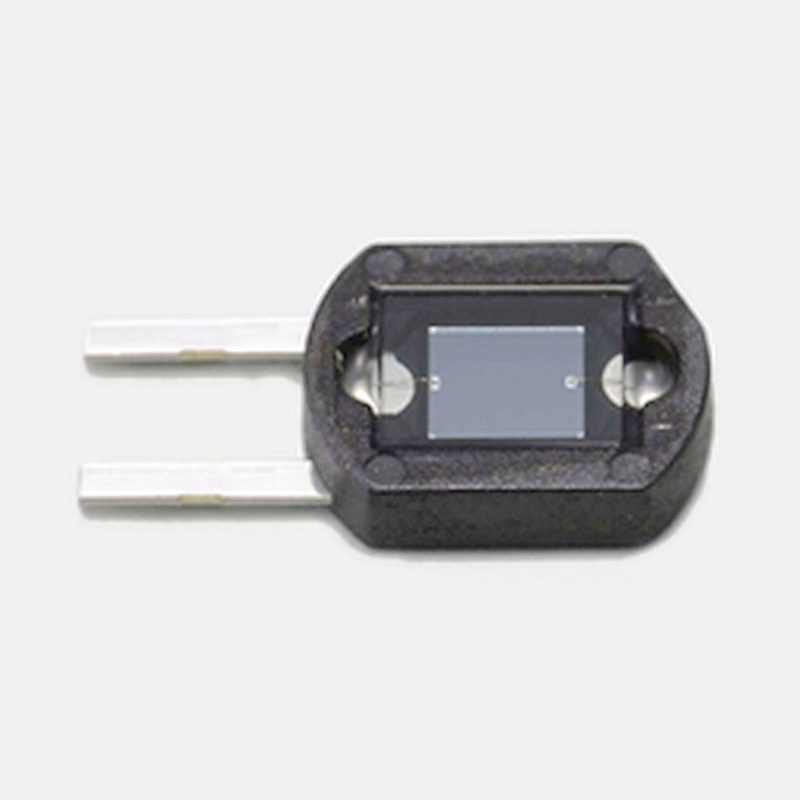

hamamatsu S1787-12 Plastic package photodiode with low dark current

$490.00

The S1787-12 is a plastic package photodiode that offers low dark current. Plastic package used is light-impervious, so no stray light can reach the photosensitive area from the side or backside. This allows reliable optical measurements in the visible to near infrared range, over a wide dynamic range from low light levels to high light…

Description

Features
– For visible to near IR range

Specifications

Photosensitive area	2.8 × 2.4 mm
Package	Plastic
Package category	With filter
Cooling	Non-cooled
Reverse voltage (max.)	10 V
Spectral response range	320 to 1000 nm
Peak sensitivity wavelength (typ.)	650 nm
Photosensitivity (typ.)	0.35 A/W
Dark current (max.)	20 pA
Rise time (typ.)	0.5 μs
Terminal capacitance (typ.)	200 pF
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: V_R=1V, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
