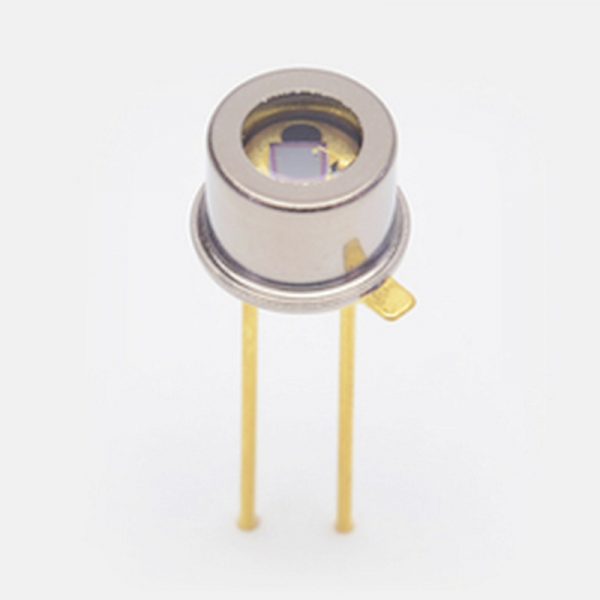

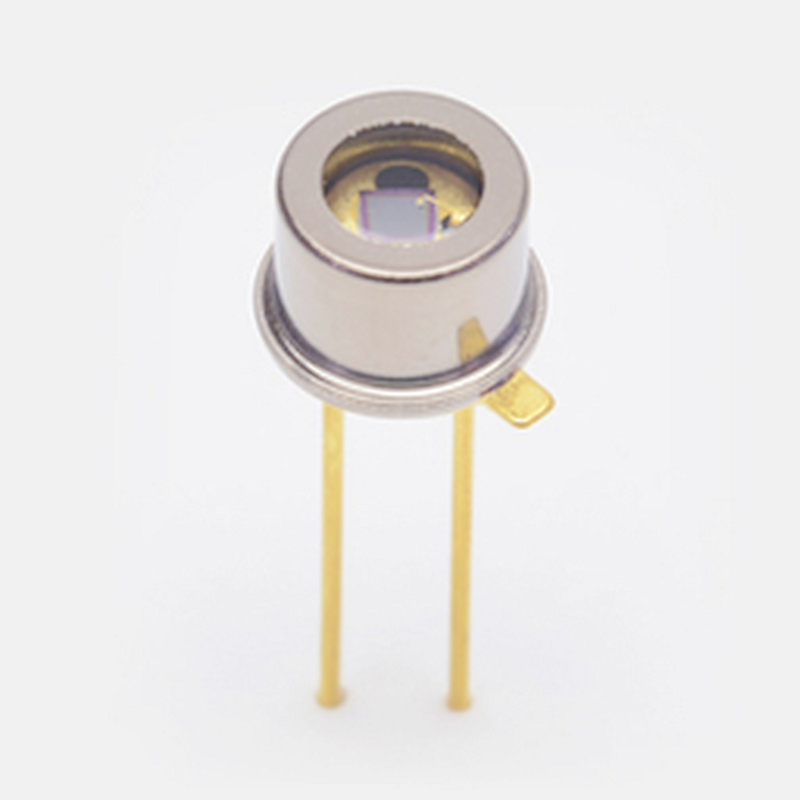

hamamatsu S2386-18K For visible to near IR, general-purpose photometry

$490.00

Features – High sensitivity in visible to near infrared range – Low dark current – High reliability – Superior linearity Specifications Photosensitive area 1.1 × 1.1 mm Package Metal Package category TO-18 Cooling Non-cooled Reverse voltage (max.) 30 V Spectral response range 320 to 1100 nm Peak sensitivity wavelength (typ.) 960 nm Photosensitivity (typ.)…

Description

Features
– High sensitivity in visible to near infrared range
– Low dark current
– High reliability
– Superior linearity

Specifications

Photosensitive area	1.1 × 1.1 mm
Package	Metal
Package category	TO-18
Cooling	Non-cooled
Reverse voltage (max.)	30 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.6 A/W
Dark current (max.)	2 pA
Rise time (typ.)	0.4 μs
Terminal capacitance (typ.)	140 pF
Noise equivalent power (typ.)	6.8×10^-16 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, Noise equivalent power: V_R=0 V, λ=λp, unless otherwise noted
