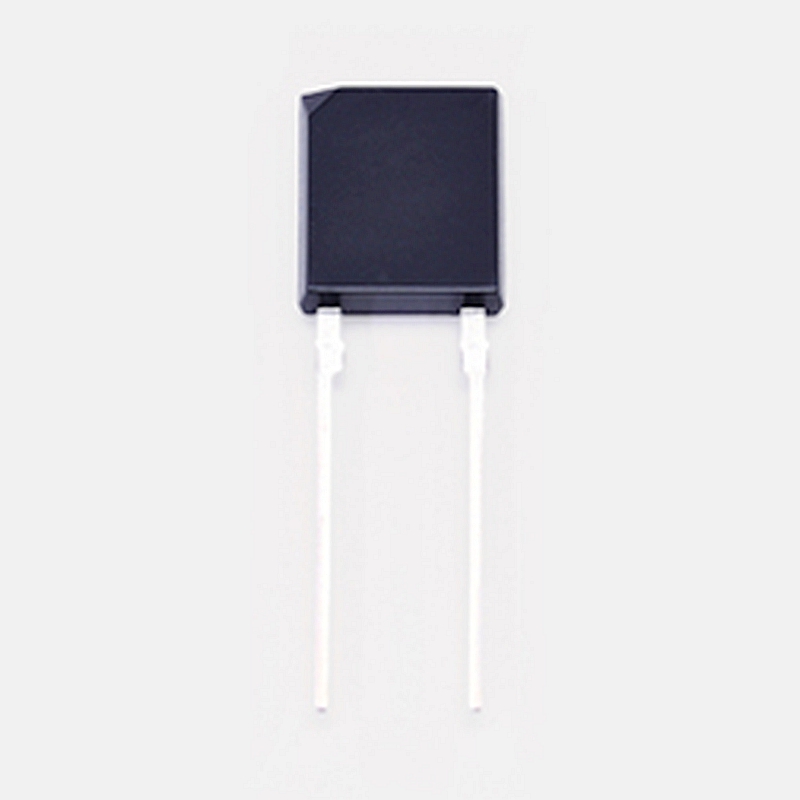

hamamatsu S2506-04 Plastic SIP (single in-line package)

$490.00

S2506-04 is a Si PIN photodiode with large active areas, molded into a visible-cut plastic SIP for detecting near infrared range only. Features – Visible-cut – Plastic package: 7 × 7.8 mm – Photosensitive area size: 2.77 × 2.77 mm Specifications Photosensitive area 2.77 × 2.77 mm Package Plastic Package category — Cooling Non-cooled…

Description

S2506-04 is a Si PIN photodiode with large active areas, molded into a visible-cut plastic SIP for detecting near infrared range only.

Features
– Visible-cut
– Plastic package: 7 × 7.8 mm
– Photosensitive area size: 2.77 × 2.77 mm

Specifications

Photosensitive area	2.77 × 2.77 mm
Package	Plastic
Package category	—
Cooling	Non-cooled
Reverse voltage (max.)	20 V
Spectral response range	760 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.56 A/W
Dark current (max.)	10000 pA
Cutoff frequency (typ.)	25 MHz
Terminal capacitance (typ.)	15 pF
Noise equivalent power (typ.)	1.0×10^-14 W/Hz^1/2
Measurement condition	Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: V_R=12 V, Cutoff frequency: V_R=12 V, Terminal capacitance: V_R=12 V, f=1 MHz, Noise equivalent power: V_R=12 V, unless otherwise noted
