Description

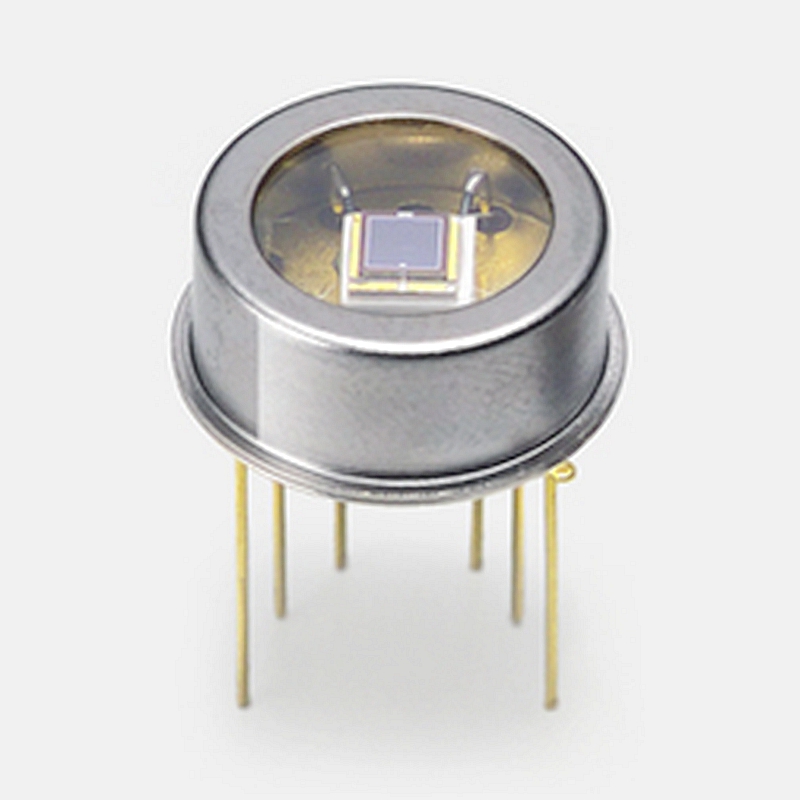

The S2592-04 combines a UV to near infrared Si photodiode with a thermoelectric cooler. A thermistor is also included in the same package to sense the Si photodiode chip temperature. This allows stable operation over long periods of time, making this sensor suitable for low-light-level detection where a high S/N is required. The S2592-04 is hermetically sealed in a TO-8 package.

Features
– High S/N
– High UV sensitivity
– Built-in thermistor allows stable operation

Specifications

Photosensitive area	5.8 × 5.8 mm
Package	Metal
Package category	TO-8
Cooling	TE-cooled
Reverse voltage (max.)	5 V
Spectral response range	190 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.5 A/W
Dark current (max.)	200 pA
Rise time (typ.)	1 μs
Terminal capacitance (typ.)	380 pF
Noise equivalent power (typ.)	1.3×10^-14 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, Noise equivalent power: V_R=0 V, λ=λp, unless otherwise noted
